If you’re looking for the 8 best logic analyzers for firmware debugging in 2026, I recommend options with high sampling speeds, multiple channels, and broad protocol support like Saleae Logic Pro and Zeroplus Lap-C Pro. Portability, accessories, and easy software integration are also key features. Each model offers something unique for complex or simple projects. Keep going, and you’ll discover all the details to pick the perfect tool for your needs.
Key Takeaways
- Prioritize models with high sampling speeds (≥100 MHz) to accurately capture fast digital signals during firmware debugging.
- Choose analyzers with multiple channels (8-16) for comprehensive multi-signal monitoring in complex projects.
- Ensure compatibility with popular analysis software like PulseView and sigrok for seamless protocol decoding.
- Opt for portable, rugged devices with versatile connection options for on-the-go debugging in various environments.
- Consider models supporting broad protocol standards (UART, I2C, SPI, CAN) to cover diverse firmware communication interfaces.
| USB Logic Analyzer for ARM FPGA Debugging |  | Best Protocol Support | Channels: 8 | Sampling Speed: 24 Msps | Protocol Support: UART, IIC, SPI, SMBus, I2S, CAN, 1-Wire, PS/2 | VIEW LATEST PRICE | See Our Full Breakdown |
| Logic Analyzer 8 Channels 24MHz USB Kit with Cables |  | User-Friendly Design | Channels: 8 | Sampling Speed: 24 MHz | Protocol Support: I2C, SPI, UART, protocols via software | VIEW LATEST PRICE | See Our Full Breakdown |
| WWZMDiB USB Logic Analyzer for ARM FPGA Debugging |  | High-Resolution Capture | Channels: 8 | Sampling Speed: 24 Msps | Protocol Support: UART, IIC, SPI, SMBus, I2S, CAN, 1-Wire, PS/2 | VIEW LATEST PRICE | See Our Full Breakdown |
| KeeYees USB Logic Analyzer with 8 Channels |  | Versatile Compatibility | Channels: 8 | Sampling Speed: 24 MHz | Protocol Support: UART, IIC, SPI, protocols via software | VIEW LATEST PRICE | See Our Full Breakdown |
| USB Logic Analyzer Set for Arduino and FPGA |  | Flexible Application | Channels: 8 | Sampling Speed: 24 MHz | Protocol Support: UART, SPI, IIC, protocols via software | VIEW LATEST PRICE | See Our Full Breakdown |
| LA1010 USB Logic Analyzer with 16 Channels |  | Cross-Platform Power | Channels: 16 | Sampling Speed: 100 MHz | Protocol Support: Over 30 protocols including I2C, SPI, UART, CAN | VIEW LATEST PRICE | See Our Full Breakdown |
| Zeroplus PC Logic Analyzer Lap-C Pro 16-Channels |  | Ultra-High Speed | Channels: 16 | Sampling Speed: Up to 1 GHz | Protocol Support: Digital signals with protocol analysis | VIEW LATEST PRICE | See Our Full Breakdown |
| Saleae Logic Pro 16-Channel Logic Analyzer |  | Portable Power | Channels: 16 | Sampling Speed: 500 MS/s (digital) | Protocol Support: SPI, I2C, UART, protocols via software | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
-
LONELY BINARY Logic Analyzer 8 Channels 24MHz USB Kit with Base Module, Breadboard Breakout Board, USB-A & Type-C Cables, Test Clips, Alligator Clips Compatible with Arduino ESP32 STEM DIY Projects
【High-Speed 8-Channel Analysis】Captures digital signals at up to 24MHz across 8 channels, enabling precise debugging of complex protocols...
As an affiliate, we earn on qualifying purchases.
USB Logic Analyzer for ARM FPGA Debugging
If you’re working on microcontroller, ARM system, or FPGA development, the WWZMDiB USB Logic Analyzer stands out as an excellent choice for firmware debugging. It offers 8 channels and a maximum sampling speed of 24 Msps, making it ideal for capturing fast digital signals. The device supports a wide range of protocols, including UART, I2C, SPI, CAN, and more, simplifying protocol analysis. Its compatibility with 0–5V signals guarantees versatility across various projects. With automatic protocol analysis features, it helps you quickly interpret data, speeding up your debugging process and enhancing your development workflow.
- Channels:8
- Sampling Speed:24 Msps
- Protocol Support:UART, IIC, SPI, SMBus, I2S, CAN, 1-Wire, PS/2
- Connectivity:USB
- Compatibility:Windows, Mac, Linux
- Power Supply:0–5V input
- Additional Feature:Supports multiple standard protocols
- Additional Feature:Automatic protocol analysis
- Additional Feature:8-channel digital input
-
WWZMDiB USB Logic Analyzer for ARM FPGA Debugging Tool 24M Sampling 8 Channels
💎【USB logic analyzer】：A good helper for microcontroller development, ARM system development, and FPGA development
As an affiliate, we earn on qualifying purchases.
Logic Analyzer 8 Channels 24MHz USB Kit with Cables
The Logic Analyzer 8 Channels 24MHz USB Kit with Cables is an excellent choice for hobbyists and professionals who need reliable multi-channel digital signal analysis without breaking the bank. It captures signals up to 24MHz across eight channels, making it ideal for debugging protocols like I2C, SPI, and UART. Its user-friendly design includes a base module, breakout board, and versatile connection options like alligator clips and jumper wires. Compatibility with USB-A and Type-C guarantees easy setup on Windows, Mac, Linux, or Ubuntu. Bundled with accessories and a storage case, it’s ready for portable, precise digital signal analysis in various projects.
- Channels:8
- Sampling Speed:24 MHz
- Protocol Support:I2C, SPI, UART, protocols via software
- Connectivity:USB-A, Type-C
- Compatibility:Windows, Mac, Linux
- Power Supply:5V via USB
- Additional Feature:Includes comprehensive accessory kit
- Additional Feature:Versatile connection options
- Additional Feature:Compatible with multiple OS
-

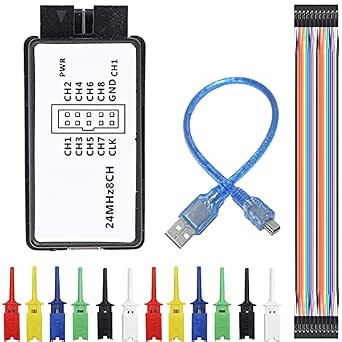

KeeYees USB Logic Analyzer Device with 12PCS 6 Colors Test Hook Clip Set USB Cable 24MHz 8CH 8 Channel UART IIC SPI Debug for Arduino FPGA M100 SCM
This kit contains 12pcs SMD IC 6 Colors Test Hook Clips which are ideal for using this 24MHz...
As an affiliate, we earn on qualifying purchases.
WWZMDiB USB Logic Analyzer for ARM FPGA Debugging
For engineers working on ARM FPGA development, the WWZMDiB USB Logic Analyzer stands out with its high sampling speed of 24Msps and support for eight digital channels, making it ideal for capturing fast, complex signals. It’s perfect for debugging microcontroller, ARM systems, or FPGA projects, offering detailed insight into signal behavior. Its compatibility with protocols like UART, SPI, I2C, CAN, and more guarantees versatile analysis. With an input voltage range up to 5V, it suits various digital logic levels. Overall, the WWZMDiB provides reliable, high-resolution data capture, streamlining firmware debugging and digital system troubleshooting.
- Channels:8
- Sampling Speed:24 Msps
- Protocol Support:UART, IIC, SPI, SMBus, I2S, CAN, 1-Wire, PS/2
- Connectivity:USB
- Compatibility:Windows, Mac, Linux
- Power Supply:0–5V input
- Additional Feature:High-resolution data capture
- Additional Feature:Supports diverse protocols
- Additional Feature:Suitable for FPGA projects
KeeYees USB Logic Analyzer with 8 Channels
The KeeYees USB Logic Analyzer with 8 channels stands out as an ideal choice for electronics enthusiasts and professionals who need reliable multi-protocol decoding in compact form. It supports UART, IIC, SPI, and more, making it versatile for various development projects. With a 24MHz frequency and a data transfer rate of 192 Mbps, it offers efficient analysis. Its lightweight, portable design and included test clips simplify connections. Compatibility with PCs, laptops, smartphones, and open-source software like sigrok guarantees flexibility. Whether debugging communication protocols or developing microcontroller systems, this analyzer delivers dependable performance and easy setup, making it a valuable tool in firmware debugging workflows.
- Channels:8
- Sampling Speed:24 MHz
- Protocol Support:UART, IIC, SPI, protocols via software
- Connectivity:USB
- Compatibility:Windows, Mac, tablets, smartphones
- Power Supply:5V via USB
- Additional Feature:Open-source software support
- Additional Feature:12 test hook clips included
- Additional Feature:Compact indoor design
USB Logic Analyzer Set for Arduino and FPGA
A USB logic analyzer set designed for Arduino and FPGA enthusiasts offers a versatile solution for debugging communication protocols and digital signals. It supports Saleae Logic Analyzer software and PulseView, ensuring compatibility with popular analysis tools. With a maximum sampling rate of 24 MHz and adjustable rates down to 25 KHz, it provides detailed insights into signal behavior. The device features 8 digital channels, operating within 0V to 5.5V, and supports UART, SPI, and IIC protocols. Its flexibility makes it ideal for debugging various embedded systems, simplifying complex signal analysis and enhancing troubleshooting efficiency across multiple development projects.
- Channels:8
- Sampling Speed:24 MHz
- Protocol Support:UART, SPI, IIC, protocols via software
- Connectivity:USB
- Compatibility:Windows, Mac, Linux
- Power Supply:5V via USB
- Additional Feature:Supports Saleae Logic software
- Additional Feature:Multiple sampling rate options
- Additional Feature:Voltage threshold at 1.5V
LA1010 USB Logic Analyzer with 16 Channels
With its 16 channels and 100MHz sampling rate per channel, the LA1010 USB Logic Analyzer is an excellent choice for anyone needing detailed digital signal analysis in firmware debugging. Its portable design makes it adaptable to various testing environments, and it supports Windows, macOS, and Linux with automatic driver installation. It captures 16 signals simultaneously, providing real-time visualization of digital waveforms that help identify issues quickly. Plus, it decodes over 30 protocols like I2C, SPI, UART, and CAN, making debugging communication between components faster and more straightforward. The included KingstVIS software offers an intuitive interface for analyzing signals and protocols effortlessly.
- Channels:16
- Sampling Speed:100 MHz
- Protocol Support:Over 30 protocols including I2C, SPI, UART, CAN
- Connectivity:USB
- Compatibility:Windows, macOS, Linux
- Power Supply:5V via USB
- Additional Feature:Protocol decoding over 30 protocols
- Additional Feature:Real-time signal visualization
- Additional Feature:Cross-platform compatibility
Zeroplus PC Logic Analyzer Lap-C Pro 16-Channels
If you’re looking for a portable yet powerful logic analyzer for firmware debugging, Zeroplus PC Logic Analyzer Lap-C Pro 16-Channels stands out with its impressive 16 channels and high-speed sampling capabilities. It features 64Mb memory per channel, supporting ultra-high internal asynchronous sampling up to 1GHz and external synchronous measurement at 250MHz. The device enables extended recording sessions with a maximum sampling rate of 200MHz and PC transfer speeds of 100MB/s. Its all-in-one mode combines logic analysis, protocol decoding, and digital pattern generation, making it versatile for various testing needs. Plus, free software and decoder downloads simplify setup and analysis.
- Channels:16
- Sampling Speed:Up to 1 GHz
- Protocol Support:Digital signals with protocol analysis
- Connectivity:USB
- Compatibility:Windows, macOS, Linux
- Power Supply:External power via USB
- Additional Feature:Ultra-high internal asynchronous speed
- Additional Feature:Long time recording mode
- Additional Feature:Combines logic analysis & pattern generation
Saleae Logic Pro 16-Channel Logic Analyzer
The Saleae Logic Pro 16 stands out for its versatile protocol decoding, making it an ideal choice for engineers and developers tackling complex firmware debugging. With 16 multi-use digital and analog inputs, it supports protocols like SPI, I2C, and over 23 others. Its high sampling rates—up to 500 MS/s for digital and 50 MS/s for analog—ensure precise capture of signals. The device’s durable aluminum build and compact red design make it portable, while USB 3.0 connectivity facilitates high-volume data storage. Rated 4.7 out of 5 stars, it’s praised for ease of use, compatibility across OS platforms, and reliable performance in demanding testing environments.
- Channels:16
- Sampling Speed:500 MS/s (digital)
- Protocol Support:SPI, I2C, UART, protocols via software
- Connectivity:USB 3.0
- Compatibility:Windows, Mac, Linux
- Power Supply:5V via USB
- Additional Feature:Supports over 23 protocols
- Additional Feature:High data storage capacity
- Additional Feature:Durable aluminum build
Factors to Consider When Choosing Logic Analyzers for Firmware Debugging
When selecting a logic analyzer for firmware debugging, I focus on key factors like protocol support, sampling speed, and the number of digital channels needed for my projects. Ease of software integration and hardware portability also play vital roles in ensuring I can work efficiently in different environments. By considering these points, I can choose a tool that best fits my debugging requirements.
Protocol Support Compatibility
Choosing a logic analyzer that supports the communication protocols used in your project is essential for effective firmware debugging. You want to ensure it handles protocols like UART, SPI, I2C, CAN, or 1-Wire seamlessly. Confirm the analyzer’s compatibility with the protocols’ electrical standards and voltage levels to avoid signal misinterpretation or damage. Look for devices that offer automatic protocol decoding and analysis, which can markedly speed up troubleshooting. If your project uses less common or custom protocols, verify that the analyzer supports them or allows for custom protocol definitions. Additionally, software support is critical—make sure it can decode, visualize, and log the protocols effectively. Proper protocol support ensures accurate analysis and efficient debugging, saving you time and effort.
Sampling Speed Requirements
Selecting a logic analyzer with the right sampling speed is fundamental to capturing accurate digital signals during firmware debugging. Higher sampling speeds, like 24MHz or above, are essential for reliably analyzing fast signals and complex protocols. You should choose a sampling rate based on the maximum frequency of the signals you’re working with to prevent data loss or aliasing. A good rule of thumb is to aim for at least 10 times the signal frequency to guarantee reliable waveform capture. For high-speed data transmissions, a sampling speed of at least 24Msps is often necessary for precise decoding. While lower speeds may suffice for slow or low-frequency signals, they risk missing critical timing details in fast digital systems. Picking the right sampling speed ensures you don’t miss important information during firmware debugging.
Number of Digital Channels
The number of digital channels in a logic analyzer directly influences how effectively you can monitor multiple signals simultaneously, which is crucial for thorough firmware debugging. More channels enable you to capture complex interactions across various communication lines or system components, providing an all-encompassing view of your firmware’s behavior. This reduces the need for multiple devices and simplifies troubleshooting, especially in intricate, multi-threaded environments. When choosing a logic analyzer, consider whether its channel count aligns with your project’s complexity. Devices with fewer channels are suitable for simpler tasks, but if you’re dealing with sophisticated firmware, investing in an analyzer with a higher channel count is necessary. It ensures you can analyze all relevant signals in one go, saving time and improving diagnostic accuracy.
Software Integration Ease
Seamless software integration can considerably streamline the process of setting up and operating a logic analyzer during firmware debugging. I look for tools that work smoothly with popular analysis platforms like PulseView, Sigrok, or Saleae Logic, which helps keep my workflow efficient. Support for open-source software is a bonus, offering flexibility and room for customization tailored to my debugging protocols. An intuitive user interface and straightforward driver installation minimize the learning curve, saving me valuable time. Compatibility across multiple operating systems—Windows, macOS, and Linux—is also essential, ensuring I can work effectively regardless of my preferred platform. Overall, easy software integration reduces setup hassles and allows me to focus more on diagnosing and fixing firmware issues quickly.
Hardware Portability Features
When choosing a logic analyzer for firmware debugging, portability features are vital because I often work in different environments, from labs to field locations. A compact, lightweight design makes it easy to carry and set up quickly. Many models include integrated batteries or USB power options, so I don’t need a constant power source, which is essential outdoors or on the move. Connectivity options like USB Type-C or USB-A provide flexible, hassle-free connections to various devices. Rugged enclosures or protective cases help the analyzer withstand transport and tough conditions. Wireless or Bluetooth-enabled analyzers are particularly useful, allowing cable-free operation and greater mobility. These portability features guarantee I can work efficiently, regardless of where I am, without compromising on performance or convenience.
Connection and Accessory Options
Choosing a logic analyzer with versatile connection options is crucial because it directly impacts how easily I can set up and troubleshoot different hardware configurations. I look for devices offering various connection methods like alligator clips, test hooks, or direct headers, which make attaching to different signals simple. Accessories like jumper wires, breakout boards, and multiple clip types help guarantee secure, flexible connections. Compatibility with existing computers and development boards is essential—USB-A, USB-C, or other ports should match my setup. I also evaluate if the analyzer supports expansion modules to increase channels or customize configurations. Additionally, reliable operation across different voltage levels and signal types ensures I can connect to a range of digital signals and protocols without issues.
Frequently Asked Questions
How Do I Interpret Complex Signal Waveforms During Debugging?
When interpreting complex signal waveforms during debugging, I start by analyzing the timing, amplitude, and pattern of signals. I look for anomalies like glitches or unexpected shifts, comparing them to expected behaviors. Using the logic analyzer’s zoom and decode features helps me understand protocol details. I stay patient, take notes, and break down the waveform into manageable sections, which makes identifying issues much easier.
What Are the Most Compatible Firmware Development Environments?
Think of firmware development environments as the fertile soil where your ideas grow. I find that IDEs like Visual Studio, Eclipse, and Keil uVision are highly compatible due to their extensive plugin support and broad hardware compatibility. They serve as reliable tools, seamlessly integrating with debuggers and hardware interfaces, making my workflow smoother. Choosing the right environment depends on your target hardware and personal preference, but these are my go-to options.
How Does Sampling Rate Affect Debugging Accuracy?
A higher sampling rate improves debugging accuracy by capturing more detailed signal data, making it easier to identify glitches or timing issues. When the sampling rate is too low, you risk missing critical events or misinterpreting signals, which can lead to incorrect conclusions. I always recommend choosing a logic analyzer with a sufficiently high sampling rate to guarantee precise analysis, especially when working with fast or complex firmware signals.
Can Logic Analyzers Support Real-Time Firmware Troubleshooting?
Yes, many logic analyzers support real-time firmware troubleshooting. I’ve used models with high sampling rates and deep memory buffers that let me capture and analyze signals as the firmware runs, without interrupting the system. This real-time capability helps me identify issues quickly, especially in complex or time-sensitive applications. When choosing a logic analyzer for this purpose, I look for fast sampling, user-friendly interfaces, and robust triggering options.
What Security Features Are Available in Advanced Logic Analyzers?
Advanced logic analyzers come with robust security features like encrypted data storage and secure communication protocols, ensuring sensitive firmware data stays protected. They also often include user authentication and access controls, limiting who can view or modify data. Some models even offer tamper-proof hardware and secure firmware updates. These security measures give me confidence that my debugging process remains safe from unauthorized access or data breaches.
Conclusion
Choosing the right logic analyzer can really streamline your firmware debugging process. Did you know that a well-selected analyzer can reduce debugging time by up to 40%? With options ranging from budget-friendly models to advanced multi-channel devices, there’s something for every project. Invest wisely, and you’ll improve your debugging efficiency, ensuring faster development cycles and more reliable firmware. Don’t underestimate the power of the right tool — it makes all the difference.
